Driven Piles

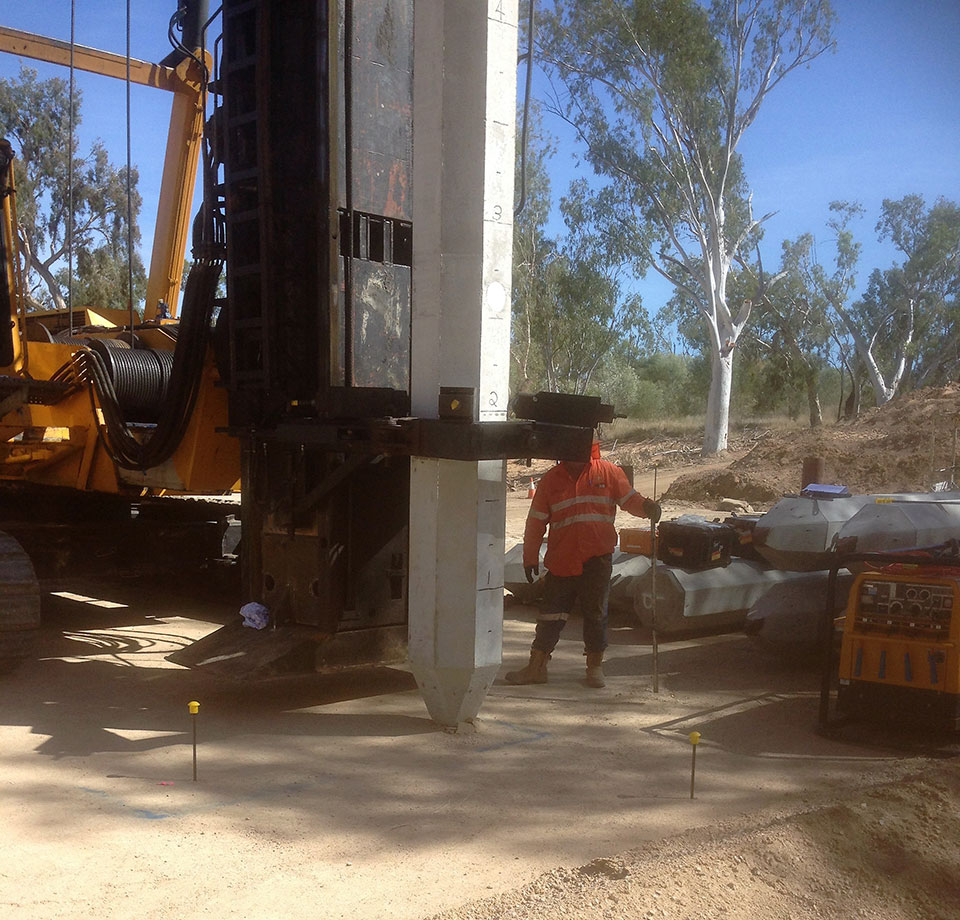

Pre-stressed Concrete Piles

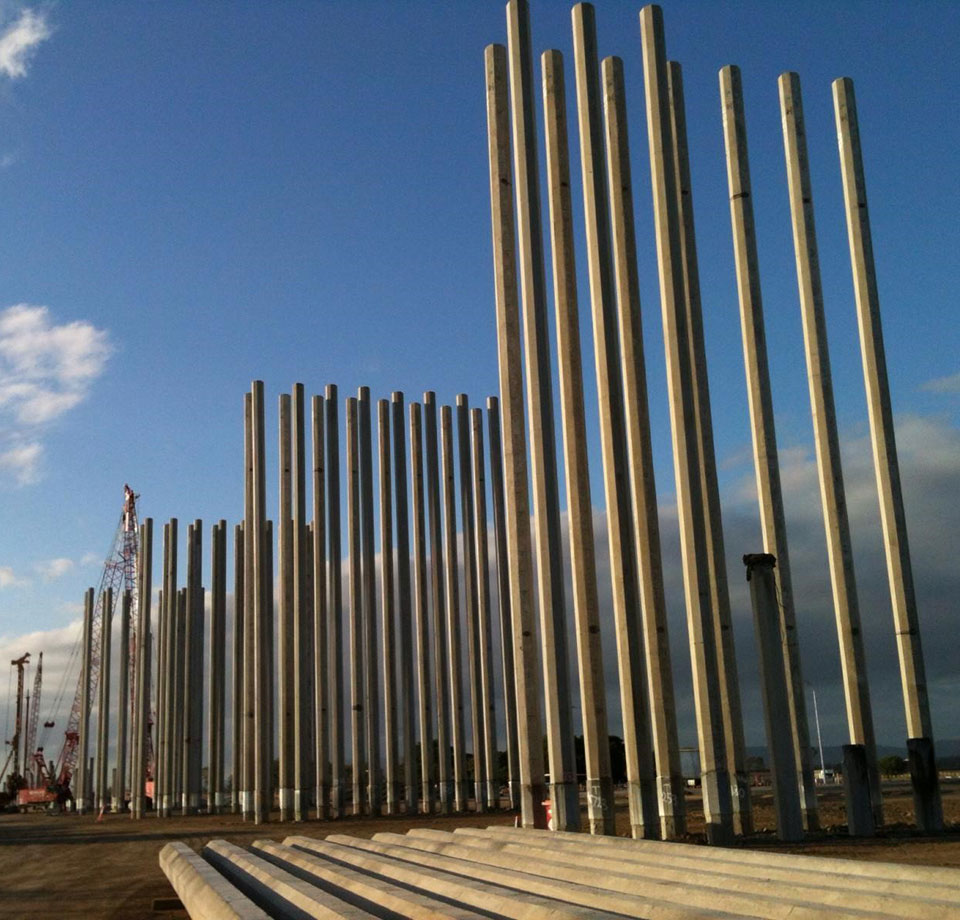

Prestressed concrete piles are a 550mm diameter octagonal configuration. They can be supplied in single lengths upto 28m long, thereafter a splice joint is required.

Driven piles are a cost-effective technique in suitable ground conditions. As they are driven into the ground, the soil is displaced and compacted. This is removing the requirement for spoil disposal, which makes them ideal for contaminated sites.

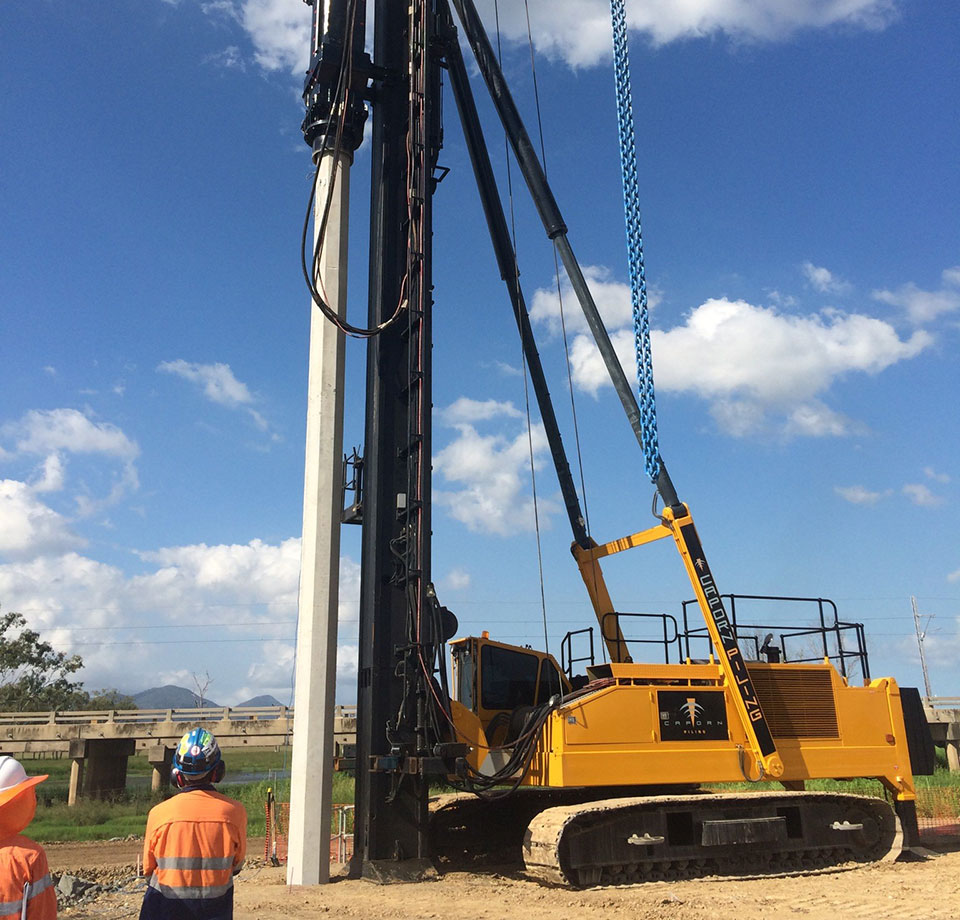

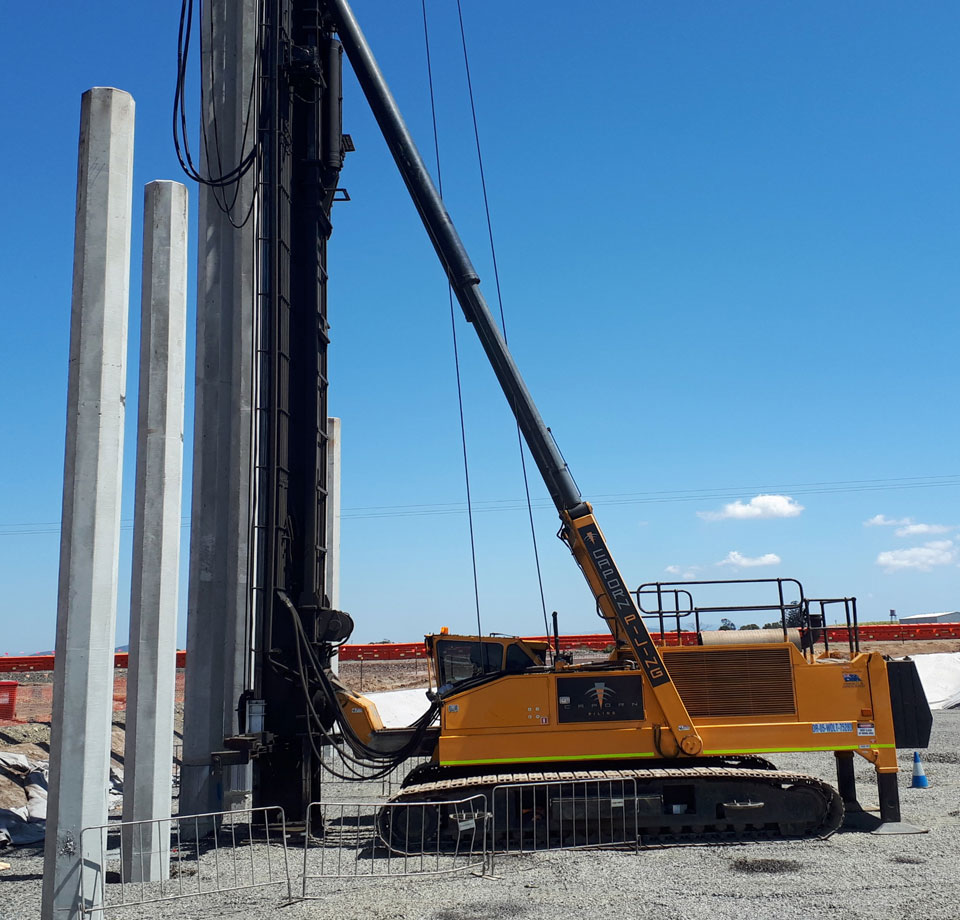

Piles are driven using hydraulic impact hammers either mounted on a leader rig or rope suspended from a crane. In some instances dense soil layers may require pre-drilling to allow the pile to be driven through. In-house dynamic load testing assesses the pile capacity, along with also evaluating shaft integrity, driving stresses, and hammer energy/efficiency.

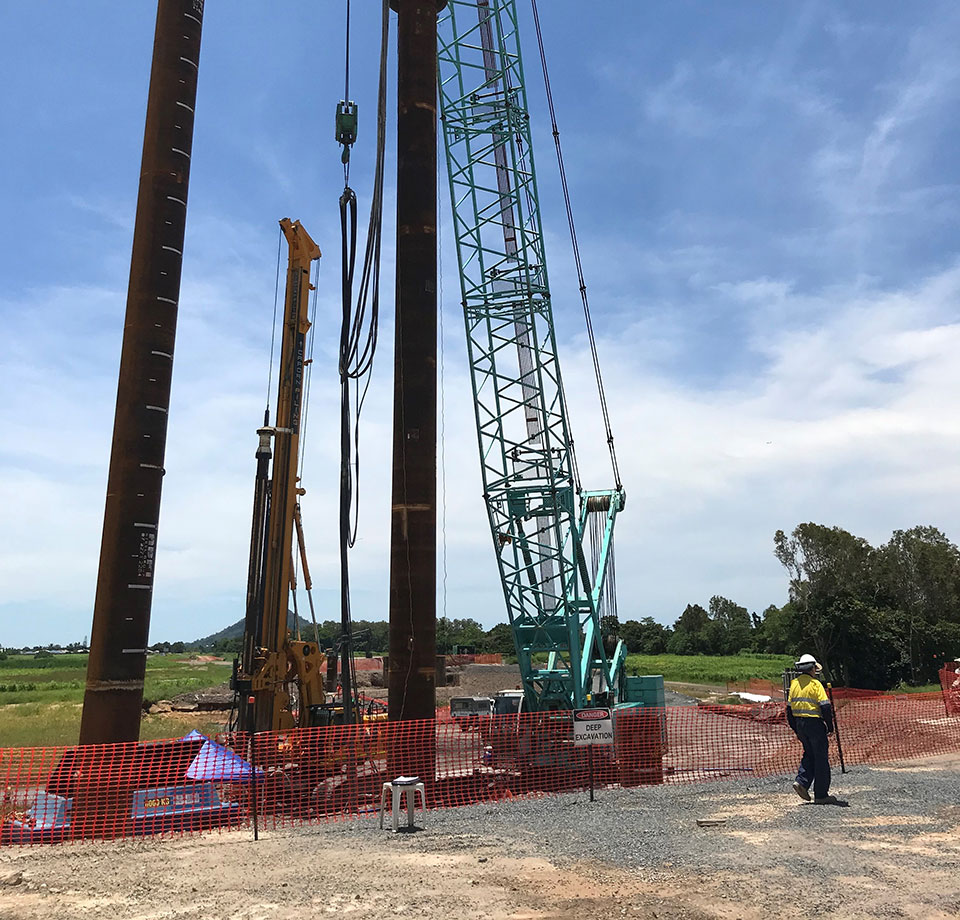

Steel Tubular Piles

Steel tubular piles vary in diameter, with upto 4.2m diameter piles installed in Australia . Piles are generally delivered in longest lengths permitted on the road and then spliced on site where required.

Driven steel piles are a cost-effective technique in suitable ground conditions.

They are driven to driven to a predetermined level and checked for capacity, following which they are partially excavated over the upper 12 to 18m section of the pile, where a reinforced concrete pile shaft is then cast to allow load transfer between the steel tube and the reinforced concrete shaft is via adhesion and shear connection between the concrete and steel, and between the steel tube and the soil by friction.

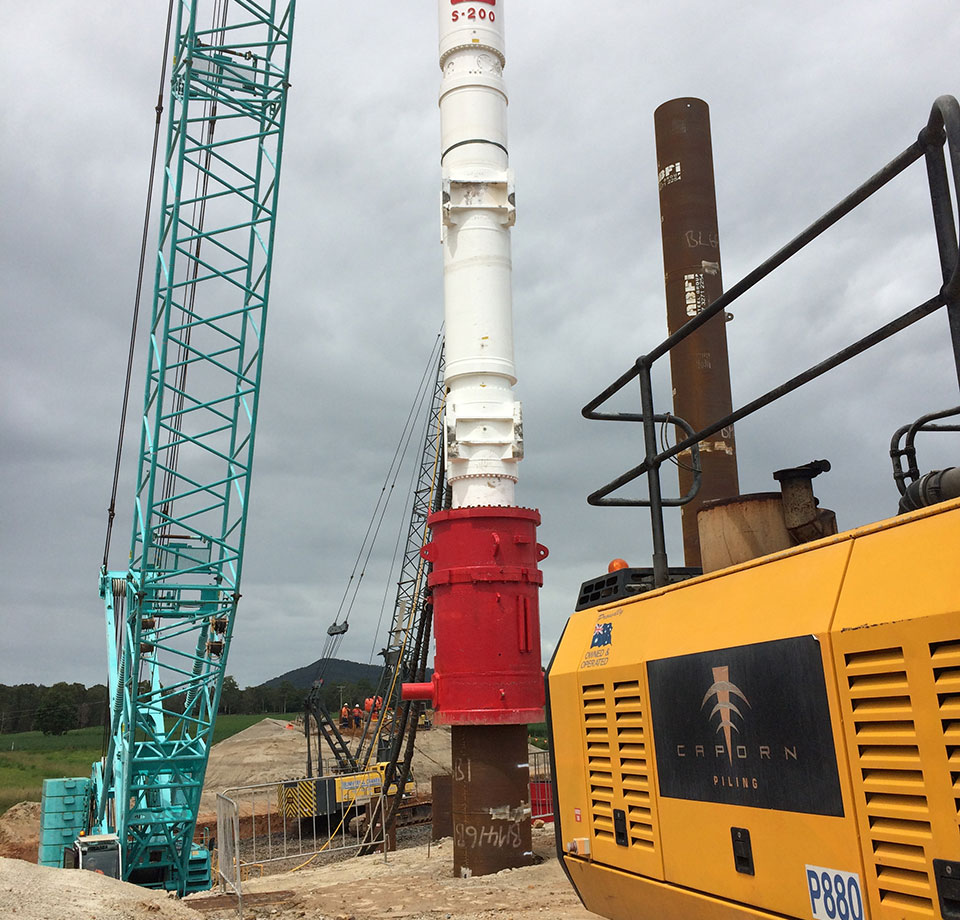

Piles are driven using hydraulic impact hammers either mounted on a leader rig or rope suspended from a crane.
In-house dynamic load testing assesses the pile capacity, along with also evaluating driving stresses, and hammer energy/efficiency.
